COLLET CHUCKS BT 30 – BT 35 – BT 40

מק"ט T118-1-1-1-1-1-1-1-1-1-1-1 סוג Router bits and collet chucks for CNC router

Supplied with nut (without collet) and retaining pawl
Threaded nut DIN 6499
Balanced to 24000 RPM
Retaining pawl T118.894.R for Komo router
Retaining pawl T118.895.R for: BT30 Shoda
Retaining pawl T118.896.R for: BT35 Heian
Retaining pawl T118.897.R for: BT40 Shoda
For the spring collets see our item T119 and T123; for the clamping nuts see our item Z091 (without ball bearing nut) and/or Z091 (with ball bearing nut); for the wrenches see our item Z052 (standard) and/or Z052 (torque).
To be used on our adjustable demount device Klein^® T139

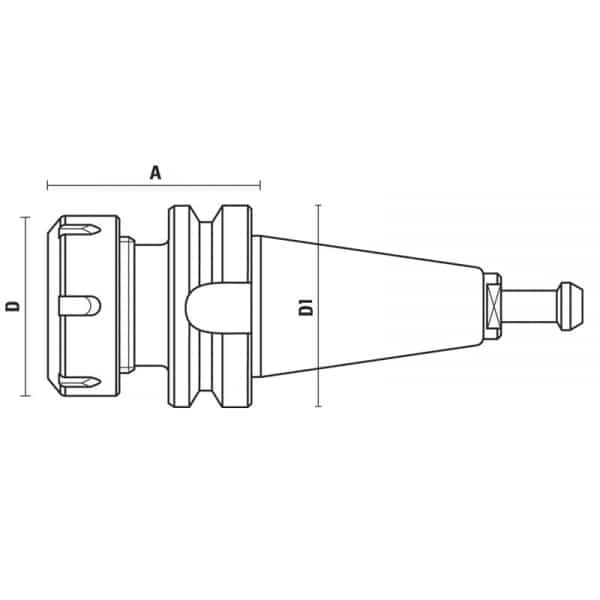

The "A" measure will be determined with clamped router bits' shanks by using both our spring collets DIN6499. The "A" measure may be subject to variations depending on the diameter of the clamped tools.

Item	Type	A	D	D1	Spring collets	Clamping nut	Rotation
T118.910.R	BT 30	60	50	46	Ø 2÷20 (Art. T119/ER32)	Z091.101.R ball bearing nut	RH
T118.912.R	BT 30	70	63	46	Ø 2÷30 (Art. T123/ER40)	Z091.102.R ball bearing nut	RH
T118.920.R	BT 35 (1)	69	50	53	Ø 2÷20 (Art. T119/ER32)	Z091.101.R ball bearing nut	RH
T118.921.R	BT 35 (2)	69	50	53	Ø 2÷20 (Art. T119/ER32)	Z091.101.R ball bearing nut	RH
T118.922.R	BT 35 (1)	60	63	53	Ø 2÷30 (Art. T123/ER40)	Z091.102.R ball bearing nut	RH
T118.923.R	BT 35 (2)	60	63	53	Ø 2÷30 (Art. T123/ER40)	Z091.102.R ball bearing nut	RH
T118.930.R	BT 40	65	50	63	Ø 2÷20 (Art. T119/ER32)	Z091.101.R ball bearing nut	RH
