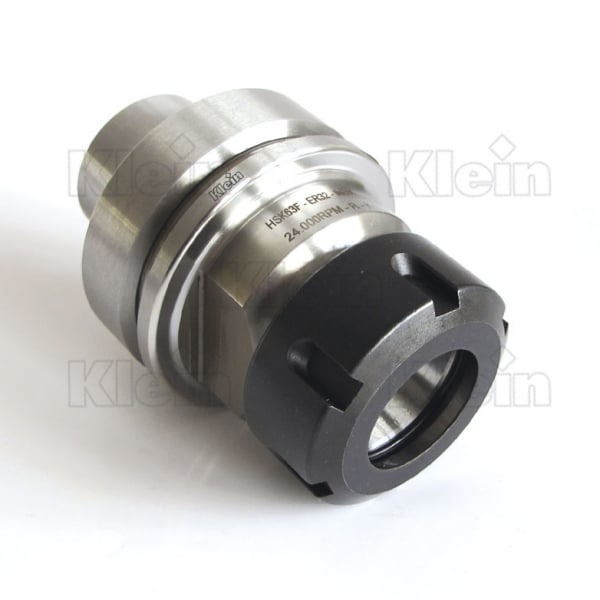

COLLET CHUCKS HSK63F INOX

מק"ט T118-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1 סוג
הוספה להצעת מחיר
המוצר בהצעת המחיר

פרטים נוספים

  • Special tool holders produced in stainless steel AISI 420
  • Supplied with nut (without collet).
  • Balanced to 24000 RPM
  • Needed when working with coolant: machines for marble, glass, aluminium working and others;
  • Highly recommended when processing resinoid wood and composite materials
  • Suggested when working in “humid” environment.
  • Extremely low maintenance costs, easy to clean;
  • When used with coolant our water-tight spring collets are suggested (our Item T119 and T123).
  • For the spring collets see our item T119(ER32) – T123(ER40) – T124(EOC25-SYOZ25); for the clamping nuts see our item Z091 (without ball bearing nut) and/or Z091 (with ball bearing nut); for the wrenches see our item Z052 (standard) and/or Z052 (torque).
  • To be used on our adjustable demount device Klein® T139.

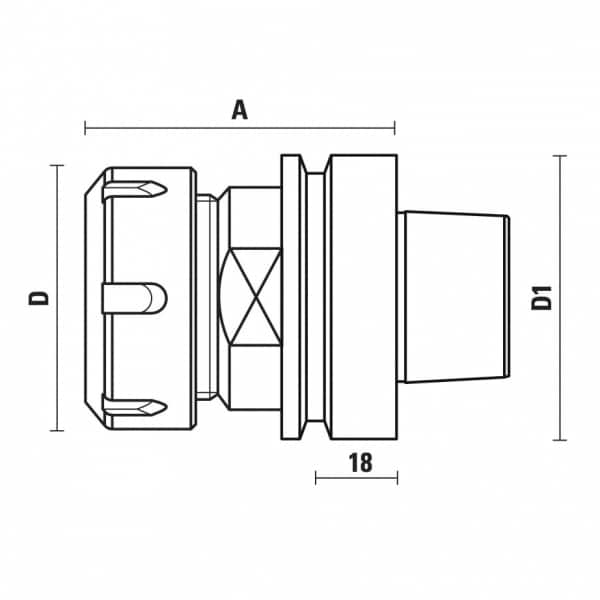

  • The "A" measure will be determined with clamped router bits' shanks by using both our spring collets DIN6499 and DIN6388. The "A" measure may be subject to variations depending on the diameter of the clamped tools.
  • The hollow taper shank is produced according to DIN69893 for inserting the Balluff microchip.

גדלים וגרסאות נוספות

Item A D D1 Spring collets Clamping nut Rotation
T118.976.RAI 74 50 63 Ø 2÷20 (Art. T119/ER32) Z091.001.R RH
T118.978.RAI 74 50 63 Ø 2÷20 (Art. T119/ER32) Z091.101.R ball bearing nut RH
T118.980.RAI 77 63 63 Ø 2÷30 (Art. T123/ER40) Z091.002.R RH
T118.982.RAI 77 63 63 Ø 2÷30 (Art. T123/ER40) Z091.102.R ball bearing nut RH
T118.983.RAI 78 60 63 Ø 3÷26 (Art. T124/EOC25) Z091.202.R RH
T118.984.RAI 78 60 63 Ø 3÷26 (Art. T124/EOC25) Z091.203.R ball bearing nut RH
