Supplied with nut (without collet) and retaining pawl
Threaded nut DIN 6499
Retaining pawl T118.891.R for: Thermwood®,Vitap, Hiteco machines
Balanced to 24000 RPM
For the spring collets see our item T119; for the clamping nuts see our item Z091 (without ball bearing nut); for the wrenches see our item Z052 (standard) and/or Z052 (torque).
To be used on our adjustable demount device Klein® see item T139.
These tool holders ensure a maximum error of concentricity between the conical part and the tool's seat of 0.003mm (Runout: 0.0001")

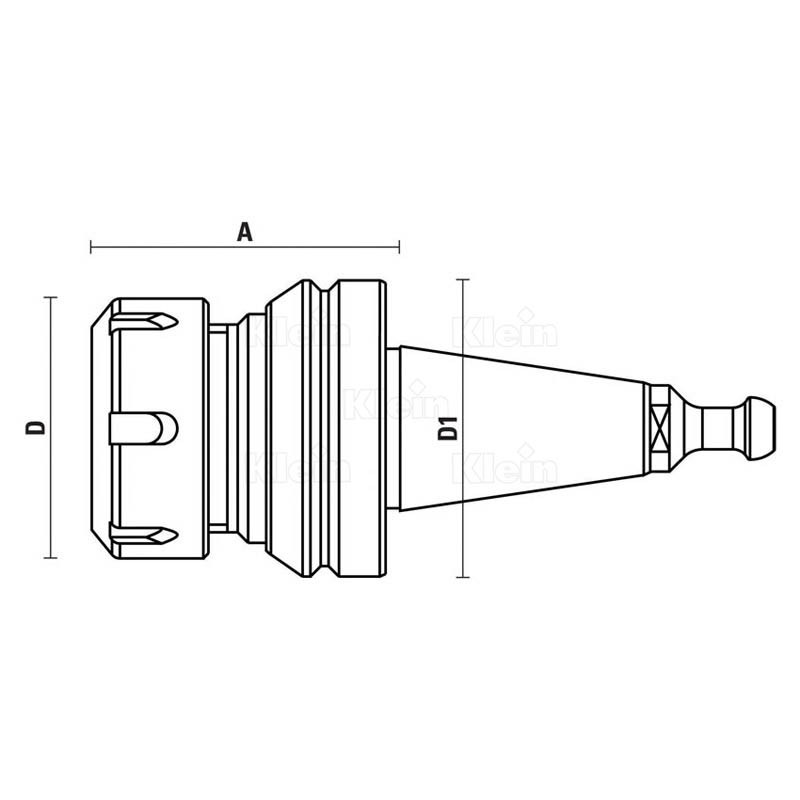

The "A" measure will be determined with clamped router bits' shanks by using both our spring collets DIN6499 and DIN6388. The "A" measure may be subject to variations depending on the diameter of the clamped tools.
